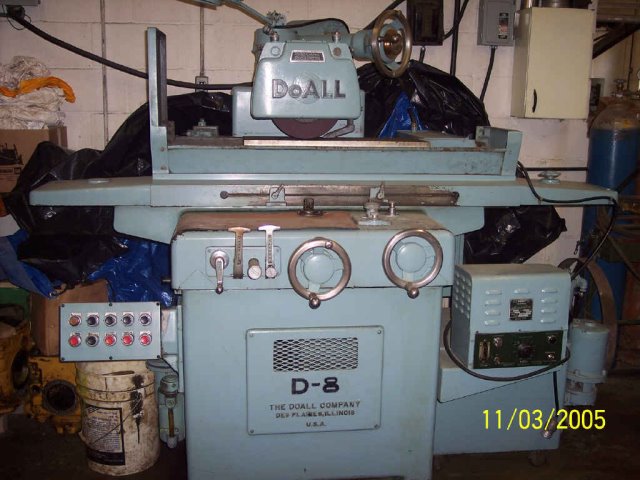

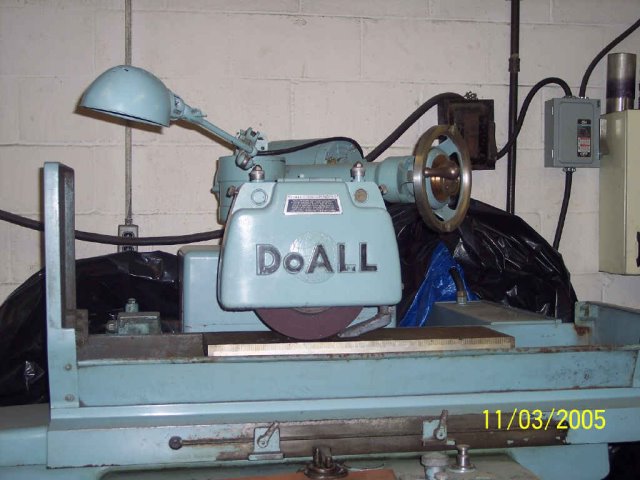

8" x 24", DOALL, No. D8-1, Hyd., Fine Line EMC, Variable Control, Clean
GENERAL SPECIFICATIONS
Manual or Hydraulic Operation
Chuck Size..............................8" x 24"
Grinding Wheel Size.....................10" x 3/4" x 3"
Table Traverse..........................10" x 26"
Work-Height Capacity (Tbl. to Wheel)....15"
Traverse Speed..........................5-75 FPM
Hand Transverse Feed (Increments)....... .0002"
Vert. Wheel Head Adjustment............. .0001"
EQUIPPED WITH
3 HP Spindle Motor, 1725 RPM 220/440/60/3
1-1/2 HP Hydraulic Motor
8" x 24" Fine Line Electromagnetic Chuck w/Walker Chuck Control
Power Elevation
Lubrication System
Approximate Weight......................4000 Lbs.
